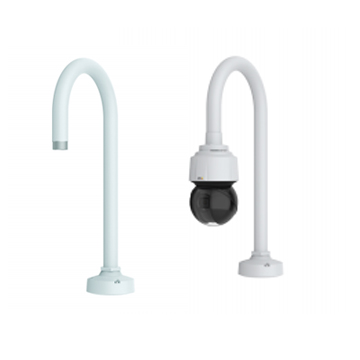

AXIS TQ6501-E Parapet Mount
Parapet mount with conduit side entry
AXIS TQ6501-E Parapet Mount is a robust, outdoor-ready mount made of aluminum. The round base of the mount makes
it easy to install as well as suitable for installations on poles. It’s compatible with Axis pendant kits with 1.5’’ NPS or
NPT inner thread which enables mounting of several Axis cameras, and Axis ACI ?’’ conduit adapters. Cables can be
routed through the bottom, or from the side by using a conduit connection. AXIS TQ6501-E has four holes for standard
pole mounted pan and tilt camera fixings, equi-spaced on 101.6 PCD.
> Outdoor-ready
> Lightweight, made of aluminium
> Robust, IK10-rated
> Easy to install
> Compatible with standard pan tilt pole mounted camera fixings
General
Supported products
AXIS P56 Series
AXIS Q60 Series
AXIS Q61 Series
AXIS M5525–E
Optional accessories
AXIS ACI Conduit Adapter 3/4” U-shape 30 mm
AXIS ACI Conduit Adapter 3/4” NPS
AXIS Bird Control Spike
AXIS T94A01D Pendant Kit
AXIS T94B02D Pendant Kit
AXIS T94F01D Pendant Kit
AXIS T94F02D Pendant Kit with Sunshield
AXIS T94K01D Pendant Kit
AXIS T94M01D Pendant Kit
AXIS T92M02D Pendant Kit
AXIS T94N01D Pendant Kit
AXIS T9402D Pendant Kit
AXIS T94T01D Pendant Kit
AXIS T94T02D Pendant Kit
AXIS T94V01C Dual Camera Mount
AXIS T94V01D Pendant Kit
AXIS T94V02D Pendant Kit
Environment Outdoor Indoor
Maximum load 40 kg (88 lb)
Casing IK10-rated Aluminium Color: White NCS S 1002-BThis product can be repainted
Cable routing Bottom: Cable hole
Side: Cable conduit hole M20 (3/4”)
Sustainability PVC free Halogen free
Dimensions Height: 754 mm (29.69 in)
Width: 160 mm (6.3 in)
Depth/Length: 418 mm (16.46 in)
Weight 2.5 kg (5.51 lb)
Included accessories  :Installation guide, AXIS T91A6 Pipe Seal
