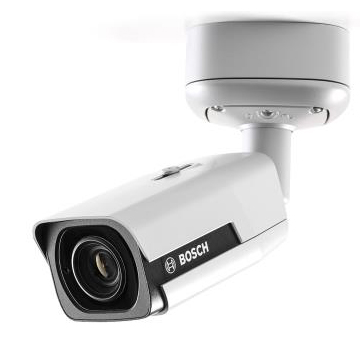

BOSCH NBE-4502-ALAR Bullet camera
Bullet 2MP 2.8-12mm auto IP67 IK10
Product No. F.01U.328.215
Key Specifications
Input voltage Power-over-Ethernet (48 VDC nominal); or 24 VAC ±10% / +12 VDC ±10%
PoE IEEE standard IEEE 802.3af (802.3at Type 1) Power level: Class 3
Power consumption 950 mA (12 VDC) 750 mA (24 VAC) 260 mA (PoE)
Sensor type 1/2.8?inch CMOS
Active pixels 1937 (H) x 1097 (V); approximately 2.12MP
Color 0.052 lux
Mono 0.008 lux
With IR 0.0 lx
Wide Dynamic Range 92 dB WDR
Measured accordingto IEC 62676 Part 5 85 dB WDR
Video compression H.265; H.264; M- JPEG
Streaming Multiple configurable streams in H.264 or H.265 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI)
Camera processing latency <120 ms (max. average at 1080p30)
GOP structure IP, IBP, IBBP
Encoding interval 1 to 25 [30] fps
Encoding regions Up to 8 areas with encoder quality settings per area
1080p HD 1920 x 1080
Upright mode 1080p 1080 x 1920
1.3 MP (5:4) (cropped) 1280 x 1024
Upright mode 1.3 MP (5:4) (cropped) 1024 x 1280
Accessories
Pole mount adapter for LTC9210,9212,9215
Commercial Type No. LTC 9213/01
Product No. F.01U.009.291

Midspan, 15W, single port, AC in
Commercial Type No. NPD-5001-POE
Product No. F.01U.305.288

Midspan, 4 port x 15W, AC in
Commercial Type No. NPD-5004-POE
Product No. F.01U.305.289
