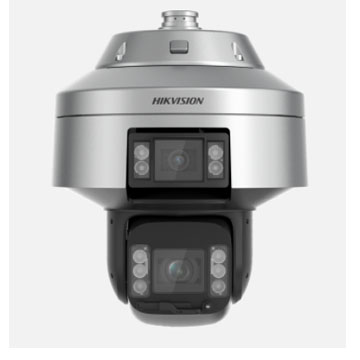

iDS-2SK7184MXS-D(C5F2)(T2)7-inch 4K 5X DarkFighter IR Network Speed

Brand:Hikvision

Model:iDS-2SK7184MXS-D(C5F2)(T2)

Detail

iDS-2SK7184MXS-D(C5F2)(T2)7-inch 4K 5X DarkFighter IR Network Speed
Multi-target-type detection: support automatic person detection and quick capture for face comparison, and link face and human body
Smart events: The panoramic channel arms the detection area and links the PTZ channel to track targets and output alarms
Face capture: The PTZ channel locks onto and captures detected face
Tracking takeover: In smart events, when the target moves out of the panoramic view, the PTZ channel continues to track the target in a larger area
Support simultaneous capture, linked output, and feature abstraction of face and human body
Adjustable pan and tilt position for both channels. Panoramic channel: pan 0 to 360° endless, tilt 0 to 30°. PTZ channel: pan 0 to 330°, tilt -10° to 90°
Auto calibration: Once calibrated, no need for calibration at other PTZ positions
Built-in memory card slot
Easy-to-install all-in-one design with one IP address, one network cable, one power supply, and no server

  • Camera
  • Image Sensor

    [Panoramic channel]: 1/1.8" progressive scan CMOS,

    [PTZ channel]: 1/1.2 progressive scan CMOS"

  • Min. Illumination

    [Panoramic channel]: Color: 0.0005 Lux @(F1.0, AGC ON), B/W: 0.0001 Lux @(F1.0, AGC ON);

    [PTZ channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON), 0 lux with IR

  • Shutter Speed1 to 1/30000 s
  • Slow Shutteryes
  • Focussemi-auto,manual,auto
  • Day & NightICR
  • Day/Night Switchday,night,auto,scheduled-switch
  • BLCyes
  • WDR120 dB WDR
  • HLCyes
  • 3D DNRyes
  • Defogyes
  • EISyes
  • Regional Exposureyes
  • Regional Focusyes
  • Image Settingssaturation, brightness, contrast, sharpness
  • Image Parameters Switchyes
  • White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
  • Digital Zoom[panoramic channel] no; [PTZ channel] 16x
  • Optical Zoom[panoramic channel] no; [PTZ channel] 5 ×
  • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • SNR≥52dB
  • General Functionmirror;password protection;watermark;IP address filter
  • Gain Controlauto;manual
  • Lens
  • Focal Length[Panoramic channel] 6 mm; [PTZ channel] 10 to 50 mm
  • Zoom Speed[PTZ channel] Approx. 1.1 s
  • FOV

    [Panoramic channel]

    horizontal field of view: 58.4°,

    vertical field of view: 31°,

    Diagonal field of view: 68.7°;

    [PTZ channel]

    horizontal field of view: 36° to 13.1°,

    vertical field of view: 20.3° to 7.3°,

    diagonal field of view: 41° to 14.85°

  • Aperture[panoramic channel] F1.0; [PTZ channel] F1.6
  • Illuminator
  • White Light Distance

    [panoramic channel] up to 50 m

    [PTZ channel] up to 20 m

  • IR Distance[PTZ channel] up to 200 m
  • Smart IRyes
  • PTZ
  • Movement Range (Pan)[panoramic channel] 0 to 360°, [PTZ channel] 0 to 330°
  • Movement Range (Tilt)[panoramic channel] 0 to 30°, [PTZ channel] -10° to 90°
  • Pan Speed

    [panoramic channel] pan speed: configurable from 0.1° to 100°/s;

    [PTZ channel] pan speed: configurable from 0.1° to 210°/s

  • Tilt Speed[panoramic channel] tilt speed: configurable from 0.1° to 25°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s
  • Proportional Zoom[panoramic channel]: no; [PTZ channel]: yes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Power-Off Memoryyes
  • Park Actionpreset;pattern scan;patrol scan;auto scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;dome reboot;dome adjust;aux output
  • Exception DetectionIP address conflict;HDD full;illegal login;network disconnected;存儲(chǔ)器錯(cuò)誤
  • Video
  • Max. Resolution[panoramic channel] 2560 × 1440, [PTZ channel] 3840 × 2160
  • Stream Typemain stream, sub-stream, third stream
  • Main Stream

    [panoramic channel]

    50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

    60 Hz:30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

    [PTZ channel]

    50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

    60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    [panoramic channel]

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

    [PTZ channel]

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    [panoramic channel]

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

    [PTZ channel]

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video CompressionMJPEG;H.264;H.265
  • Video Bit Rate32 to 16384 kbps
  • H.264 Typebaseline profile, main profile, high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROIfixed region
  • Audio
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
  • Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filteringyes
  • Smart Features
  • Feature Abstractionface feature abstraction, human body feature abstraction, vehicle feature abstraction
  • Multi-Target-Type DetectionSupport face, human body, and vehicle capture, track and grade the target, and output the best capture picture; support face and human body feature analysis, modeling and comparison
  • Face Comparisonyes
  • Basic Eventaudio exception;motion detection;video tampering alarm;alarm input;alarm output;exception
  • Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection
  • Smart Trackingpanorama tracking;event tracking
  • Smart RecordANR;Dual-VCA
  • Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP
  • Smart EncodingH.265+;H.264+;ROI;SVC
  • Network
  • Network StorageNAS (NFS, SMB/ CIFS);ANR
  • ProtocolsQos;FTP;SMTP;UPnP;SNMP;IPv4/IPv6;HTTP;HTTPS;802.1x;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;DHCP;Bonjour;UDP;IGMP;ICMP;PPPoE
  • APIISAPI;Hikvision SDK;Hik-Connect;ISUP;Open Network Video Interface;Third-party management platform;Open-ended API
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
  • ClientiVMS-4200
  • Web BrowserIE10+, Chrome57+, Firefox52+, Safari12+
  • Interface
  • Communication InterfaceRJ45;self-adaptive;1000 M Ethernet Interface
  • On-Board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
  • Alarm Input2 alarm inputs
  • Alarm Output1 alarm output
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω
  • RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • General
  • Power36 VDC ± 25%
  • Power Consumption And CurrentMax. 70 W
  • Operating Conditions-40℃ to 70℃, humidity lower than 95%RH
  • Resetyes
  • Wiper[panoramic channel]: no; [PTZ channel]: yes
  • Demistyes
  • MaterialADC12, PC+10%GF
  • Dimensions? 320 mm × 393 mm (? 12.6" × 15.47")
  • WeightApprox. 10.6 kg (23.37 lb.)
  • Web Client Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • ProtectionIP66
