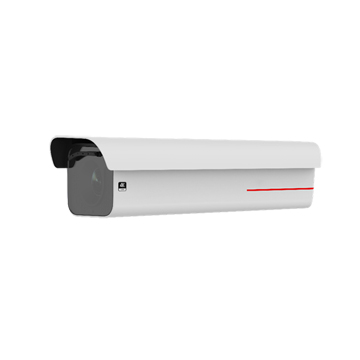

IPC6285-VRZ Huawei2MP Starlight IR Motorized Zoom Bullet Camera
Supports behavior analysis;
4/3" CMOS sensor;
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
CPU Hi3519 V101
Memory DDR3 1.0 GB
Flash type SPI NAND Flash 256.0 MB
Max resolution 4K 4096(H)*2160(V); 4K 3704(H)*2778(V)
Sensor size 4/3"
Min illumination Color: 0.008 lux; B/W: 0.008 lux or 0 lux (infrared illuminator enabled)
Focal length 12–84 mm
Angle of view At 4096 x 2160 resolution: Horizontal: 12.2° (T) to 76.5° (W) Vertical: 7° (T) to 44.2° (W) At 3840 x 2160 resolution: Horizontal: 11.4° (T) to 73.3° (W) Vertical: 7° (T) to 44.5° (W) At 3648 x 2736 resolution: Horizontal: 11.1° (T) to 70.0° (W) Vertical: 8.6° (T) to 54.6° (W)
IR range 160 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis Fast movement,Removed object,Tripwire crossing,Intrusion,Loitering
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M/1000M adaptive Ethernet port
Power type 24 V AC, 24 V DC, PoE (IEEE 802.3bt)
Power consumption Maximum: 54 W; typical: 24 W
Operating temperature –40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP66
IK rating IK10
