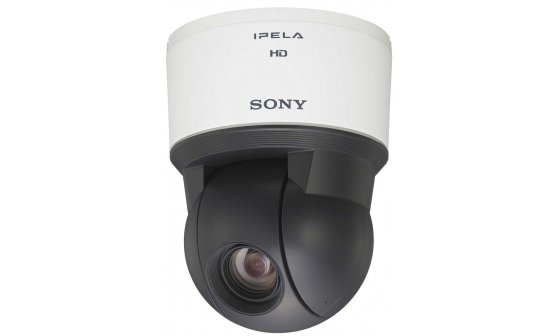

SNC-EP580 SONY 1080p/30 fps PTZ Camera

Specifications
Camera
Image Sensor1/2.8-type Exmor CMOS sensor
Number of Effective PixelsApprox. 3.27 Megapixels
Sync SystemInternal synchronization
Minimum Illumination (50 IRE)Color: 1.7 lx (F1.6, AGC On, 1/30 s, 50 IRE)
B/W: 0.3 lx (F1.6, AGC On, 1/30 s, 50 IRE, Night Mode)
Minimum Illumination (30 IRE)Color: 1.2 lx (F1.6, AGC On, 1/30 s, 30 IRE)
B/W: 0.18 lx (F1.6, AGC On, 1/30 s, 30 IRE, Night Mode)
Dynamic RangeTheoretically 86 dB by DynaView Technology
S/N Ratio (Gain 0 dB)50 dB (Gain 0 dB)
GainAuto/Manual (-3 to +28 dB)
Shutter Speed1/1 s to 1/10,000 s
Exposure ControlFull auto, Shutter priority, Iris priority, Manual
White BalanceAuto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
LensAuto-focus zoom lens
Powered ZoomYes
Zoom RatioOptical zoom 20x
Digital zoom 12x
Total zoom 240x
Powered FocusYes
Auto FocusYes
Horizontal Viewing Angle55.4° to 2.9°
Vertical Viewing Angle43.4° to 1.3°
Focal Lengthf = 4.7 mm to 94.0 mm
F-NumberF1.6 (Wide) to F3.5 (Tele)
Minimum Object Distance10 mm (Wide) to 800 mm (Tele)
Pan/Tilt Angle (powered)340 ° endless rotation/105 °
Pan Speed300 °/s (max.)
Tilt Speed300 °/s (max.)
Number of Preset Positions256
Number of Tour Programs5
Camera Features
Day/NightTrue D/N
Wide-DDyna View
Noise ReductionNR
Privacy Masking (number)24
Privacy Masking (shape)Quadrangle
Privacy Masking (color/effect)Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic
Edge StorageYes
Voice AlertYes
Superimpose Number3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark
Superimpose LanguageEnglish
Menu LanguageEnglish, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai, Turkish, Polish
Smartphone viewerYes
Video
Resolution1920 x 1080, 1680 x 1056, 1280 x 1024, 1440 x 912, 1280 x 960, 1376 x 768, 1280 x 800, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192
Compression FormatH.264, MPEG-4, JPEG
Maximum Frame RateH.264: 30 fps (1920 x 1080) *1
MPEG-4: 30 fps (1440 x 912) *1
JPEG: 30 fps (1440 x 912) *1
Bitrate Control ModeCBR/VBR (selectable)
Range of Bit Rate Setting64 Kbps to 8 Mbps
Adaptive Rate ControlH.264
Bandwidth ControlJPEG
Multi streaming CapabilityDual streaming *2
Number of Clients5
Letter BoxYes (1920x 1080 mode, aspect ratio: 16:9)
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA
Intelligent Motion DetectionYes
Tamper AlarmYes
Advanced Audio DetectionYes
Audio
Compression FormatG.711/G.726
System Requirements
Operating SystemWindows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
ProcessorIntel Core2 Duo 2.33 GHz or higher
Memory2 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver. 3.5 (plug-in free viewer only)
Safari Ver. 4.0 (plug-in free viewer only)
Google Chrome Ver.4.0 (plug-in free viewer only)
SNC toolboxYes
SNC toolbox mobileYes
Network
ProtocolsIPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Number of IP Address/Mac ADDRESS1
QoSDSCP
Multicast Streaming SupportYes
ONVIF ConformanceProfile S
AuthenticationIEEE802.1X
Interface
Microphone InputMini jack (monaural), MIC IN: 2.5 V DC plug-in power
Line OutputMini jack (monaural) Maximum output level: 1 Vrms
Network Port10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input)x2 (normally open/normally closed configurable)
Alarm Outputx2, AC 24V/DC 24V, 1 A (mechanical relay outputs electrically isolated from the camera)
Card SlotsSD x 1
Confirmed SD Card TypeSDHC (Max. 32 GB)
General
Power RequirementsIEEE 802.3at compliant (PoE+) Class 4, AC 24 V
Power Consumption25 W max.
Operating Temperature-5℃ to +50℃
+23°F to +122°F
Cold Start Temperature0 ℃ to +50℃
+32°F to +122°F
Storage Temperature-20 ℃ to + 60 ℃
-4 °F to + 140 °F
Operating Humidity20 % to 80 %
Storage Humidity20 % to 95 %
Dimensions *3φ147.4 mm x 190.9 mm
φ5 7/8 inches x 7 5/8 inches
MassApprox. 1.7 kg (including ceiling bracket)
Approx. 3 lb 12 oz (including ceiling bracket)
External MaterialBase cabinet: PC+ABS
Camera cabinet: PC+ABS
Side cabinet: PC+ABS
External ColorBase cabinet: 9.3G 8.5/0.2
Camera cabinet: 6.9PB 1.9/0.3
Camera cabinet: 6.9PB 1.9/0.3
Safety RegulationsJATE Technical Standard (LAN)
UL2044, IEC60950-1（CB)
VCCI Class B, FCC Class B, IC Class B
Emission: EN55022 (Class B) + EN50130-4
Immunity: EN55022 (Class B) + EN55024
Emission: AS/NZS CISPR22 (Class B)
Supplied AccessoriesInstallation Manual (1)
Ceiling bracket (1)
Screws (2)
Template (1)
24V AC connector (1)
I/O connector (1)
Warranty booklet (1)
Notes
*1When using DynaView technology, the maximum frame rate becomes 15 fps
*2Dual streaming (Any combination with JPEG/MPEG-4/H.264, including multiple streams of the same format)
*3The values for dimensions are approximate.
