Brand：Yuluo
Model：YL-D3-2611

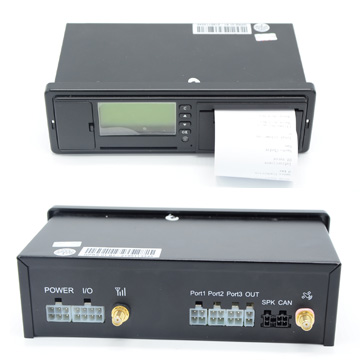

GPS Digital Tachograph YL-D3-2611 integrated with GPS positioning technology specially designed for vehicle black box record. With build-in printer,
it can print out not only drivers’ but also vehicle’s information, such as driver’s name, speed and the last 10 minutes average speed before accident.
This mostly used in trucks, taxi with ONE Din design which fit for Car standard.
Product Highlights
? Support GPS /BeiDou dual module.
? Two way communication
? Integrated build-in digital audio recording technology to support long-time audio record.
? Built-in LCD display for dispatching or sending SMS even make a calling.
? Build-in printer to print tachograph data.
? Build-in high quality TTS (Text to speech) broadcast speaker.
? Build-in driver ID card slot to support driver identification function.
? Multi-channel for camera to take image and transmission.
Functions
1、 Image function: Multi-channel for real-time image capture, camera recording events with the resolution of 640 × 480 / 320 ×240 / 160×120 can be chosen.
2、 Image transmission function: You can capture and upload pictures alarm through GPRS, transmission rate of 42.8Kbps.
3、 Voice record function: Built-in digital recorder to realize the voice transmission and storage.
4、 GPS Function: GSP location, Geo-fence, GPS mileage statistics, Vehicle pulse mileage statistics, Non-GSM area data storage, history play back and A-GPS function.
5、 Drive recorder function: Build-in LCD display to show vehicle information, driver identification, parameter setting, data export / import, information printing.
6、 Fuel consumption detection: Through RS232 connector, it can connect ultrasonic fuel sensor to get the real-time fuel level consumption.
7、 Communication with add-ons: Front RS232 connector and USB interface for data downloads and device configuration.
8、 iCloud: Support for remote fault diagnosis and debugging, remote automatic program maintenance, remote parameter configuration, remote "iCloud" to protect functions such as terminal operation statistics.
9、 CAN Bus: This function is reserved.
Standard Package
Main Device 1 pc
Driver IC card 2 pcs
GPS Antenna 1 pc
All-in-one configuration cable 1 pcs
I/O cable 1 pcs
Device Holder 1 pcs
Parameters
|
Device Property |
|
|
Device |
Use Dual-core central processing chip |
|
Design |
Battery protection |
|
Circuit protection |
Three anti-paint protection |
|
Specification |
|
|
Working Voltage |
9～36 V/DC |
|
Highest Voltage |
100V/DC |
|
Storage Battery Voltage Protect |
Lowest：8.5V（12V Battery） or 17V(24V Battery) Highest：36V |
|
Anti-reverse Power |
100V |
|
Working current |
Average:80mA@12V Saving mode current:60mA |
|
Backup battery |
320mAh |
|
Dimensions |
189×96×58 mm (L x W x H) |
|
Installing Method |
1 DIN Embedded installation on vehicle panel or use external bracket to install it. |
|
Material |
Industrial plastic board, Metal Case |
|
Unit net weight |
0.85kg |
|
Display |
|
|
Resolution Ratio |
132x64 Monochrome lattice screen |
|
Port |
|
|
Input |
9 route inputs（ include 1 route impulse mileage level detector） |
|
Output |
1 route low level: 250 mA @ DC 12V |
|
Speech Interface |
1 Build-in microphone;1 route TTS speaker (output) |
|
Data Interface |
4 route RS232 port （1 route front,3 route back） 1 route USB（front） 1 route CAN（back） |
|
SD storage |
1 routes front board Micro-SD card slot, maximum capability 128G |
|
IC Card |
Build-in IC Card Reader |
|
Environment features |
|
|
Temperature |
Work: -30 ℃ ～ +70 ℃ Storage:-40 ℃ ～ +85 ℃ |
|
Humidity |
5％ ～ 95％ Non-condensing |
|
Picture Specification |
|
|
Picture Format |
JPEG |
|
Picture Resolution |
QVGA320×240、VGA640×480 |
|
Voice Spec |
|
|
Format |
AMR |
|
GPS Spec |
|
|
Locating Time |
Cold start less 34 sec ,Hot start less 3.5sec ,Moderate Start less 33sec , |
|
Locating Accuracy |
10m 2DRMS |
|
Speed Accuracy |
0.1M/sec |
|
Data base accuracy |
100M |
|
Flash memory |
|
|
Blind area storage |
Flash memory 1400 pcs locate data |
|
Preset Road record |
Flash memory 8 line road data |
