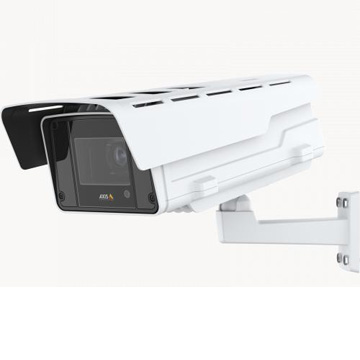

AXIS Q1645-LE Network Camera
High-speed video with 1/2" sensor and OptimizedIR
Start-up in -40 °C to 60 °C (-40 °F to 140 °F)
2 MP at up to 120 fps
OptimizedIR and electronic image stabilization (EIS)
Forensic WDR, Lightfinder and Zipstream
Included analytics
Technical specifications
Models: AXIS Q1645-LE
Camera
Image sensor CMOS
Image sensor size 1/2
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.02 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 1920x1080
Max frames per second 100/120
Electronic image stabilization
Yes
Lens
Focal length 3.9 - 10 mm
Horizontal field of view 92-42 °
Vertical field of view 50-23 °
Lens mount CS
Replaceable lens
Yes
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Network
PoE Class 4
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR
Yes
Local storage (memory card slot)
Yes
Operating temperature -40 to 60 °C
Outdoor Ready
Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint
Yes
Sustainability PVC free
Power
Power (max) –
Power (average) –
DC input voltage –
Lenses

Fujinon Varifocal Lens 8-80 mm, DC-iris
Lens i-CS 9-50 mm F1.5 8 MP
Ricom 2MP Lens DC-iris 8-26 mm F0.9
Varifocal 2 MP lens for extreme light sensitivity
Mounts
AXIS T91B47 Pole Mount
For different pole diameters
AXIS T94R01B Corner Bracket
For outdoor and indoor installations
AXIS TQ1601-E Conduit Back Box
Aluminum conduit back box for increased mounting possibilities

NAME AXIS REGION PART NUMBER
AXIS Q1645-LE AR, AU, BR, CN, EU, IN, JP, KR, UK, US 01223-001
