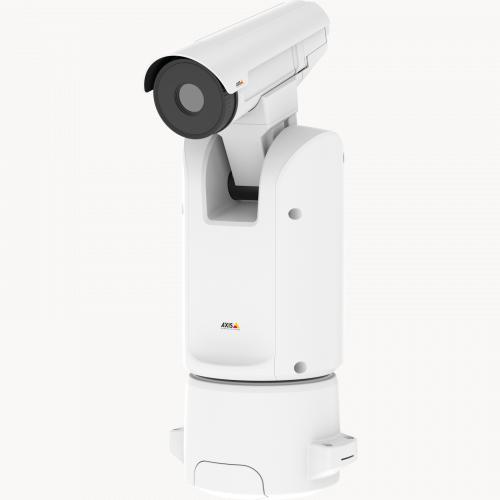

AXIS Q8641-E PT Thermal Network Camera
Unobstructed views and long-distance detection
Reliable thermal detection
Outstanding thermal contrast
Responsive positioning with quick, smooth pan and tilt capabilities
Save bandwidth with Zipstream
Smooth and steady video with electronic image stabilization
Cables & connectors
AXIS Cable 24 V DC/24-240 V AC 22 m
AXIS Surveillance Card 128 GB
AXIS Surveillance Card 256 GB
AXIS Surveillance Card 64 GB
AXIS T8611 SFP Module LC.LX
AXIS T8612 SFP Module LC.SX
AXIS T8613 SFP Module 1000BASE-T
AXIS T8640 PoE+ over Coax Adapter Kit
AXIS T8645 PoE+ Over Coax Compact Kit
AXIS T8646 PoE+ over Coax Blade Kit
AXIS T8648 PoE+ Over Coax Blade Compact Kit
AXIS T94J01A Wall Mount
AXIS T94N01G Pole Mount
AXIS T95A64 Corner Bracket
AXIS TQ6901-E Adapter Mount Bracket
AXIS Power Supply PS24 240 W
AXIS T8504-E Outdoor PoE Switch
AXIS T8504-R Industrial PoE Switch
AXIS T8508 PoE+ Network Switch
AXIS T8516 PoE+ Network Switch
AXIS T8524 PoE+ Network Switch
AXIS Bird Control Spike
AXIS T8310 Video Surveillance Control Board
AXIS T8415 Wireless Installation Tool
Technical specifications
Models: AXIS Q8641-E 24 V AC 35 mm 8.3 fps / AXIS Q8641-E 24 V AC 35 mm 30 fps
Camera
Image sensor Uncooled microbolometer
Image sensor size 384x288
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating –
IP rating IP66
Designed for repaint Yes
Analytics
Autotracking version –
Orientation aid –
Video
Max video resolution 768x576
Max frames per second * 8.3 / 30
Day and Night functionality –
Electronic image stabilization Yes
Lens Focal length 35 mm
Horizontal field of view 10.7 °
Vertical field of view 7.9 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range -90 to 45
Guard tour preset position tour
Optical zoom -
Digital zoom –
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs 4
Network
PoE Class –
Security
Signed firmware Yes
Secure boot –
TPM –
