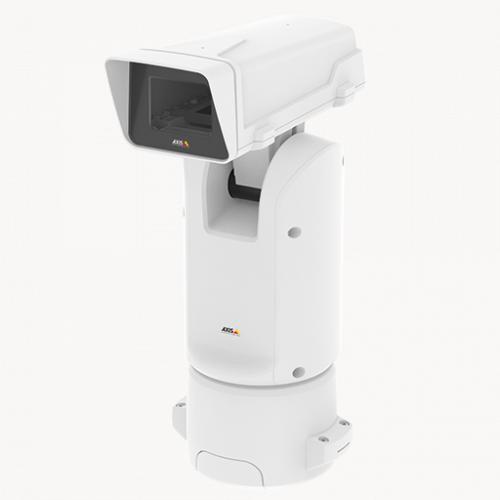

AXIS T99A10 Positioning Unit 24 V AC/DC
Ultra-smooth and high accuracy absolute positioning
AXIS T99A10 Positioning Unit 24 V AC/DC is a highly responsive and reliable positioning unit, designed for continuous
and jerk-free pan and tilt movements. Selected Axis fixed box network cameras can be installed in its protective housing.
When column-mounted, it enables a 360° unobstructed field of view for the camera. It features both RJ45 and SFP
interfaces, enabling a long-distance fiber connection with a failover network link. In extreme cold, the de-icing control
heats up the unit, ensuring a constant operational temperature. It is possible to power up the unit with 24 V AC or DC.
> Responsive positioning with 360° endless pan and 135° tilt from ground to sky
> Long-distance network connection
> Suitable for selected Axis fixed box cameras
> Weather protection
> Easy to install

Product compatibility Fixed box cameras
AXIS P1375 Network Camera
AXIS P1377 Network Camera
AXIS P1378 Network Camera
AXIS Q1615 Mk III Network Camera
AXIS Q1647 Network Camera
AXIS P1353 Network Camera
AXIS P1354 Network Camera
AXIS P1357 Network Camera
AXIS P1364 Network Camera
AXIS P1365 Mk II Network Camera
AXIS P1367 Network Camera
AXIS Q1614 Network Camera
AXIS Q1615 Mk II Network Camera
AXIS Q1615 Network Camera
AXIS Q1635 Network Camera

Dimensions 229 x 382 x 563 mm (9 x 15 x 22 in)
Maximum height with 45° tilt upwards: 668 mm (26 in)
Maximum width/depth with 360° pan clearance: 620 mm (24 in)
Weight 11.4 kg (25 lb)
Included accessories
Installation Guide
Power connector, I/O connector
Torx® bits T20 and T30
Optional accessories
AXIS T94J01A Wall Mount
AXIS T94N01G Pole Mount
AXIS T95A64 Corner Bracket
AXIS Washer Kit B
AXIS Cable 24 V DC/24-240 V AC 22 me
AXIS T8611 SFP Module LC.LX
AXIS T8612 SFP Module LC.SX
AXIS T8613 SFP Module 1000BASE-T
Power supply DIN PS24 480 W
