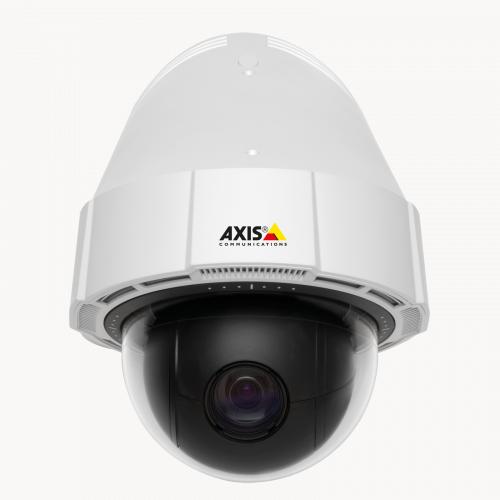

AXIS P5415-E PTZ Network Camera
Intelligent direct drive HDTV 1080p PTZ camera
Outdoor wall-mount design for easy installation
Repaintable, integrated sunshield
Durable, low maintenance mechanics
HDTV 1080p and 18x optical zoom
Two-way audio & input/output ports
Technical specifications
Models: AXIS P5415-E 50 Hz / AXIS P5415-E 60 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.5 lux
Min illumination/ light sensitivity (B/W) 0.04 lux
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot)
Yes
Operating temperature -20 to 50 °C
Outdoor Ready
Yes
Vandal rating IK07
IP rating IP66
Designed for repaint
Yes
Analytics
Autotracking version –
Orientation aid –
Video
Max video resolution 1920x1080
Max frames per second 25/30
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 4.7 - 84.6 mm
Horizontal field of view 59 - 4 °
Vertical field of view 35 - 2 °
Pan, Tilt, Zoom
Pan range +/-135
Tilt range 0-90
Guard tour limited guard tour
Optical zoom 18
Digital zoom 12
Compression
Zipstream –
H.264 Baseline, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone –
System Integration
Audio detection
Yes
Active tampering –
Alarm inputs/outputs 4
Network
PoE Class 4
Security
Signed firmware –
Secure boot –
TPM –
AXIS P5415-E 60 Hz BR, EU, JP, KR, US 0589-001
AXIS P5415-E 50 Hz CN 0546-009
AXIS P5415-E 50 Hz AR, AU, BR, EU, KR, UK, US 0546-001
