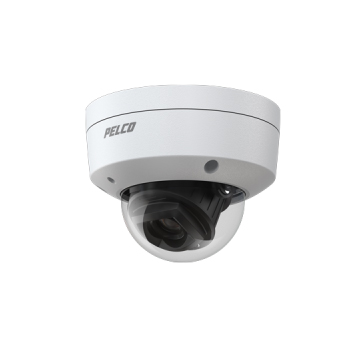

IMV229-1ERS IMV529-1ERS Pelco 3-9MM IR Environmental Mini Dome Cameras
Product Features
Excellent low light performance
True Wide Dynamic Range
30 fps @ 1080p, 20 FPS @ 5 MP
Built-in IR illumination up to 30 M
Remote zoom and focus varifocal lens
H.265 and H.264 encoding with Pelco Smart Compression
IP66 for environmental ruggedness and IK10 for vandal resistance
Built-in MicroSD / SDHC / SDXC Card Slot for On-board Storage, 256 GB tested
Built-in Microphone
Models
Resolution Model Number Lens Description
2 MP IMV229-1ERS 3 ~ 9 mm Sarix Value Environmental IR Mini Dome
5 MP IMV529-1ERS 3 ~ 9 mm Sarix Value Environmental IR Mini Dome
Compatible Accessories—Mounting Kits
SRXV-WMS L-Shaped Wall Mount
IMV-AP Electrical Box Adapter Plate
IMV-PA Pendant Mounting Adapter
IMJTV-JB Environmental Conduit Box
SRXV-WMP Pendant Wall Mount
IMV-WMJB Wall Mount Junction Box
SRXV-PP Pendant Extension Pipe
SRXV-PCF Pendant Ceiling Flange
SRXV-CM Corner Mount
SRXV-PLM Pole Mount

Technical Specifications
Camera Features
Item Description
Image Sensor 1/2.9" Progressive CMOS (IMV229-1ERS); 1/2.7" Progressive CMOS
(IMV529-1ERS)
Maximum Resolution 1920x1080 (2MP) (IMV229-1ERS); 2560x1920 (5MP) (IMV529-1ERS)
Lens Type Motorized, Vari-focal, Remote Focus
Focal Length f = 3.4 ~ 9.4 mm
Aperture F1.4 ~ F2.8
Iris Type Fixed iris
Field of View IMV229-1ERS
93° ~ 32° (Horizontal)
50° ~ 18° (Vertical)
110° ~ 37° (Diagonal)
IMV529-1ERS
30° ~ 90° (Horizontal)
23° ~ 65° (Vertical)
38° ~ 115°(Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
Day/Night Yes with removable IR cut filter
IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR
technology
Minimum Illumination 0.07 lux Color (IMV229-1ERS); 0.2 lux Color (IMV529-1ERS)
Pan Range 353°
Tilt Range 75°
Rotation Range 350°
Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
Storage Seamless Recording to MicroSD/SDHC/SDXC card (256 GB tested) and
recording to network-attached storage (NAS)
Built-in Installation Aids Focus and Zoom can be configured by the web client.
