AXIS M7116 視頻編碼器
具有 Zipstream 的經濟高效的 16 通道視頻編碼器
所有 16 個通道上 30 fps
云臺控制
支持 H.264/H.265 的 Zipstream
簽名固件和安全啟動
支持智能分析
借助 AXIS M7116，您可以按照自己的節奏遷移到 IP 監控。這款經濟高效的 16 通道視頻編碼器支持所有類型的標準分辨率模擬攝像機，包括 PTZ（平移/傾斜/變焦）攝像機。它支持智能分析以及內置的網絡安全功能。

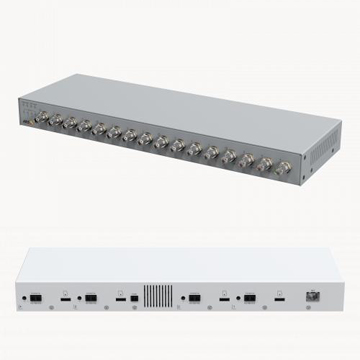

m7116 背面
物超所值
這款 16 通道視頻編碼器可將 NTSC/PAL 視頻數字化，并在所有通道上以每秒 30 幀的速度提供高質量視頻。它提供遠程訪問，允許您在任何瀏覽器或計算機上查看視頻流。此外，RS-485 端口可讓您控制模擬 PTZ（平移/傾斜/變焦）攝像機。內置 SD 存儲卡插槽允許邊緣存儲。AXIS M7116采用支持 H.264/H.265 的 Zipstream，大大降低了帶寬和存儲要求。此外，這款緊湊型編碼器采用機架安裝方式，可將大量模擬攝像機和音頻通道集成到基于 IP 的高密度視頻監控系統中。
藍色的代碼
無縫遷移到 IP 監控
AXIS M7116 讓您可以按照自己的節奏轉移到 IP 監控領域，同時保護您在模擬設備上的投資。該編碼器建立在一個開放平臺上，可以使用您選擇的供應商提供的開放標準 IT 硬件或視頻管理軟件。它包括智能分析，例如運動檢測。而且，如果您將它與 AXIS Camera Station 視頻管理軟件一起使用，您只需一個許可證即可用于所有 16 個通道。
一流的軸品質
這款可靠的編碼器具有內置的 網絡安全功能，有助于防止未經授權的訪問并保護您的系統。它比通常缺乏這些類型的網絡安全功能的 DVR 更安全。Axis Edge Vault保護您的 Axis 設備 ID 并簡化網絡上 Axis 產品的授權。此外，簽名固件和安全啟動保證固件沒有被破壞，并確保只安裝授權固件。如果需要，安全啟動可確保設備完全沒有惡意軟件，即使在出廠默認設置后也是如此。此外，得益于持續的固件更新，您始終可以依靠安訊士獲得一流的質量和支持。
AXIS M7116 CN 02036-009
AXIS M7116 AR 02036-008
AXIS M7116 KR 02036-007
AXIS M7116 AU 02036-006
AXIS M7116 JP 02036-005
AXIS M7116 US 02036-004
AXIS M7116 UK 02036-003
AXIS M7116 EU, IN 02036-002
System on chip (SoC)
Model ARTPEC-7
Memory 1024 MB RAM, 512 MB Flash
Battery backed-up real-time clock
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles
H.265 (MPEG-H Part 2/HEVC) Main profile
Motion JPEG
Resolution 176x144/176x120 (PAL/NTSC) to 720x576/720x480 (PAL/NTSC)
Frame rate 25/30 fps in all resolutions
Up to 30 fps in quad view in full resolution
Video streaming Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Quad view Image settings Rotation: 0°, 90°, 180°, 270°, de-interlace filter, compression,
color, brightness, contrast, aspect ratio correction, mirroring of
images, text and image overlay, polygon privacy mask, video
termination, sharpness, noise reduction
Network IP address Four IP address, one per four channels
Security Password protection, IP address filtering, HTTPSaencryption,
IEEE 802.1x (EAP-TLS)a, network access control, digest
authentication, user access log, multi-level user, brute force
delay protection, signed firmware, secure boot, Axis Edge Vault
with Axis device ID
Supported
protocols IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , TLSa , QoS Layer 3
DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®,SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP,
SRTP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, CDP, MQTT v3.1.1System integration
Application Programming Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T,
specification at onvif.org
Event conditions Device status: IP address removed, network lost, new IP address,
storage failure, system ready
Edge storage: recording ongoing, storage disruption
I/O: manual trigger, virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position
reached, PTZ ready
Scheduled and recurring: scheduled event
Video: average bitrate degradation, live stream open, tampering
Video encoder: video connected
Event actions Guard tours, upload of images or video clips, notification, overlay
text, preset positions, recordings, SNMP trap messages, status
LED, video clips
MQTT publish
Data streaming Event data
Applications Included
AXIS Video Motion Detection, active tampering alarm
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
General
Casing Metal casing 1U stand alone, rackmount or wallmount
Color: white NCS S 1002-B
Sustainability PVC free Power max 26 W
Connectors 16 pcs analog video BNC inputs
1 pc 1000 BASE-TX Ethernet (RJ45)
4 pcs terminal block for RS485/RS422 serial communication (full duplex)
1 pc DC input terminal block Storage Support for microSD/microSDHC/microSDXC card and encryption
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions 0 °C to 50 °C (32 °F to 122 °F)
Humidity 10–85% RH (non-condensing)
Storage conditions -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)
Approvals EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A,
KC KN32 Class A, KC KN35
Safety IEC/EN/UL 62368-1
Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78
Network NIST SP500-267
Dimensions 44 x 145 x 440 mm (1.7 x 5.7 x 17.3 in)
Weight 2050 g (4.5 lb)
Included accessories
Installation guide, Windows® decoder 1-user license, DC input
plug, 8 pcs 2-pin RS485/RS422 plugs, mains power supply,
mounting and connector kit
Optional accessories For accessories, see axis.com
Video management software
AXIS Companion, AXIS Camera Station, video management
software from Axis Application Development Partners available at axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese
