Aligilon威智倫 3.0C-H6M-D2-IR 紅外半球網絡攝像機

H6 MINI DOME CAMERA
2.0C-H6M-D1-IR 2.0 ? ? 2.9 mm ? ?
2.0C-H6M-D1 2.0 ? ? 2.9 mm ?
3.0C-H6M-D1-IR 3.0 ? ? 2.9 mm ? ?
3.0C-H6M-D1 3.0 ? ? 2.9 mm ?
3.0C-H6M-D2-IR 3.0 ? ? 2.4 mm ? ?
5.0C-H6M-D1-IR 5.0 ? ? 2.9 mm ? ?
5.0C-H6M-D2-IR 5.0 ? ? 2.4 mm ? ?
H6M-BZL1-BL Pack of 5 black surface mount bezels
H6M-BZL1-GRY Pack of 5 grey surface mount bezels
H6M-MT-DCIL1 Grey in-ceiling mount adapter
H6M-MT-DCIL1-BL Black in-ceiling mount adapter
H6M-MT-NPTA1 Grey pendant mount adapter
H6M-MT-NPTA1-BL Black pendant mount adapter

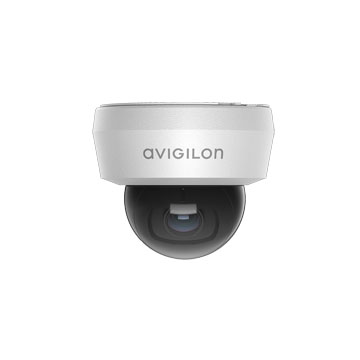

The Avigilon H6 Mini Dome brings an exceptional level of protection to indoor spaces with high-resolution images of up to
5 MP, a wide field of view and efficient bandwidth management in a compact design. This makes it an ideal solution for
retail, commercial, hospitality and general indoor applications that require a small footprint, fixed lens camera without
compromising on interior aesthetics.
LENS AND IR ILLUMINATION 2.0 MP 3.0 MP 5.0 MP
Lens 2.95 mm D1 2.95 mm
D2 2.4 mm
IR Illumination
(high power 850 nm LEDs) 10 m (33 ft) max. distance at 0 lux
Minimum
Illumination
With IR 0
Without IR 0.005 lux in monochrome mode;
0.01 lux in color mode
0.01 lux in monochrome mode;
0.02 lux in color mode
Horizontal Angle of View (HFOV) (16:9) 108 ° D1 (4:3) 100 ° D1 (16:9) 100 °
D2 (4:3) 123 ° D2 (16:9) 123 °
Vertical Angle of View (VFOV) (16:9) 61 ° D1 (4:3) 75 ° D1 (16:9) 54 °
D2 (4:3) 93 ° D2 (16:9) 69 °
Max Aperture F2.0 D1 F2.0
D2 F2.1
Control Fixed iris
