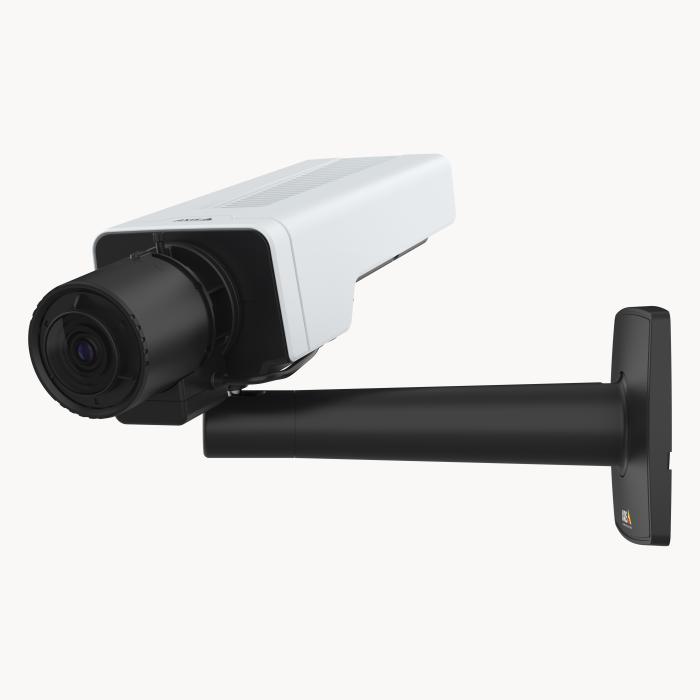

AXIS P1387 室內網絡攝像機
可靠的 5MP 室內監控
5 MP 下的出色圖像質量
覓光者 2.0 和 Forensic WDR
可更換鏡頭
深度學習分析
通過 Axis Edge Vault 實現內置網絡安全
相機
屬性描述 屬性值
圖像傳感器CMOS
圖像傳感器尺寸 1/1.8"
覓光者 覓光者 2.0
寬動態范圍 Forensic WDR
最小照度/光敏感度（顏色）0.1 lux
最小照度/光靈敏度 (B/W) 0.02 lux
視頻
屬性描述 屬性值
最大視頻分辨率 2592x1944
每秒最大幀數 50/60
電子圖像穩定 有
鏡片
屬性描述 屬性值
焦距 2.8 - 13 毫米
水平視野 112 - 24°
垂直視野 80 - 18°
鏡頭卡口 CS
可更換鏡頭 是
壓縮
屬性描述 屬性值
Zipstream 是
H.264 基線、高、主要
H.265 是
運動 JPEG 是
聲音的
屬性描述 屬性值
音頻支持 是
網絡
屬性描述 屬性值
PoE 3 級
無線的 -
安全
屬性描述 屬性值
簽名固件 是
安全啟動 是
一般的
屬性描述 屬性值
遠程對焦 –
遠程變焦 –
內置紅外線 –
本地存儲（存儲卡插槽） 有
工作溫度 -10 至 55 °C
戶外準備 –
破壞評級 –
IP等級 –
專為重涂而設計 –
可持續發展 不含 BFR/CFR、不含 PVC
力量
屬性描述 屬性值
功率（最大）10.6W
功率（平均）4.3W
直流輸入電壓10-28V
