AXIS Q2111-E 熱成像攝像機
AXIS Q2111-E 安裝在定位裝置上 AXIS T99A12AXIS Q2111-E 安裝在壁掛支架上 AXIS TQ1003-E AXIS Q2111-E 熱成像攝像機 AXIS Q2111-E 熱成像攝像機正面視圖 AXIS Q2111-E 熱成像攝像機直角 AXIS Q2111-E 安裝在定位裝置上 AXIS T99A12 AXIS Q2111-E 安裝在壁掛支架上 AXIS TQ1003-E AXIS Q2111-E 熱成像攝像機AXIS Q2111-E 熱成像攝像機正面視圖
AXIS Q2111-E 熱成像攝像機
AXIS Q2111-E 熱成像攝像機正面視圖
AXIS Q2111-E 熱成像攝像機直角
AXIS Q2111-E 安裝在定位裝置上 AXIS T99A12
AXIS Q2111-E 安裝帶壁掛式 AXIS TQ1003-E
遠程檢測和驗證
可靠的遠程熱檢測
靈活的安裝選項
支持強大的分析
四個 I/O 端口和邊到邊
內置網絡安全功能，配備 Axis Edge Vault
這款堅固耐用的攝像機非常適合周邊安全和遠距離檢測，可提供全天候可靠的檢測和驗證，同時保護隱私。憑借靈活的安裝選項，它可以安裝在定位裝置上，以便更好地了解場景。
始終可靠的檢測和驗證
AXIS Q2111-E 采用熱成像技術，可在所有光照條件下，甚至在煙霧和輕霧中提供全天候可靠的檢測和驗證，同時保護隱私。強大的傳感器具有極高的熱靈敏度和 60 毫米鏡頭，使其成為周邊安全的理想選擇，可捕捉遠距離發生的事件。當安裝在定位裝置（單獨出售）上時，這款堅固耐用的攝像機可提供 360° 無障礙視野，使操作員能夠立即精確定位任何位置或以流暢的全景視角進行巡邏。此外，電子圖像穩定 (EIS) 可確保在所有環境中提供穩定、可靠的視頻。

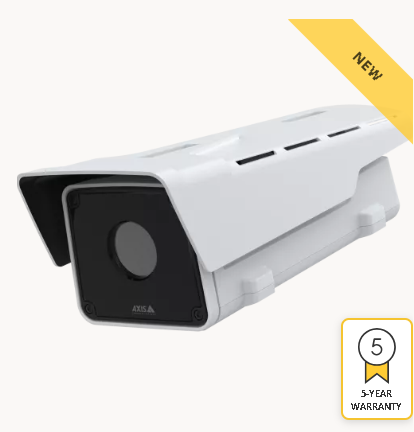

AXIS Q2112-E Thermal Camera
slide 3 of 5
AXIS Q2101-E/AXIS Q2112-E installed with positioning unitAXIS Q2101-E/Q2112-E installed with wall mount White AXIS Q2112-E Thermal Camera viewed from its left angle AXIS Q2101-E/AXIS Q2112-E  AXIS Q2101-E/AXIS Q2112-E AXIS Q2101-E/AXIS Q2112-E installed with positioning unit AXIS Q2101-E/Q2112-E installed with wall mount White AXIS Q2112-E Thermal Camera viewed from its left angleAXIS Q2101-E/AXIS Q2112-E
White AXIS Q2112-E Thermal Camera viewed from its left angle
AXIS Q2101-E/AXIS Q2112-E
AXIS Q2101-E/AXIS Q2112-E
AXIS Q2101-E/AXIS Q2112-E installed with positioning unit
AXIS Q2101-E/Q2112-E installed with wall mount
Outstanding high-resolution detection and verification
High-resolution detection, low false alarm rate
Lens options available
Flexible mounting options
Support for powerful analytics

Built-in cybersecurity with Axis Edge Vault

Technical specifications
DATASHEET (PDF)
Variants: AXIS Q2112-E 25 mm 8.3 fps / AXIS Q2112-E 19 mm 30 fps / AXIS Q2112-E 60 mm 8.3 fps / AXIS Q2112-E 10 mm 30 fps / AXIS Q2112-E 25 mm 30 fps / AXIS Q2112-E 60 mm 30 fps / AXIS Q2112-E 35 mm 8.3 fps / AXIS Q2112-E 35 mm 30 fps / AXIS Q2112-E 19 mm 8.3 fps / AXIS Q2112-E 10 mm 8.3 fps / AXIS Q2112-E 100 mm 8.3 fps / AXIS Q2112-E 100 mm 30 fps
Camera
Property description Property value
Image sensor Uncooled microbolometer
Thermal sensitivity (NETD) <20mK @ 25C, F1.0
Thermal sensor resolution 640x480
Video
Property description Property value
Max video resolution 800x600
Max frames per second * 8.3 / 30 / 8.3 / 30 / 30 / 30 / 8.3 / 30 / 8.3 / 8.3 / 8.3 / 30
Electronic image stabilization Yes
Multiple color palettes Yes
Lens
Property description Property value
Focal length * 25 / 19 / 60 / 10 / 25 / 60 / 35 / 35 / 19 / 10 / 100 / 100 mm
Horizontal field of view * 24.1 / 31 / 10 / 63 / 24.1 / 10 / 17 / 17 / 31 / 63 / 6.2 / 6.2 °
Vertical field of view * 18.5 / 24 / 7.7 / 46 / 18.5 / 7.7 / 13 / 13 / 24 / 46 / 4.6 / 4.6 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
System Integration
Property description Property value
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs 4
Serial connectors Yes
Video motion detection Yes
Network
Property description Property value
PoE Class 4
Security
Property description Property value
Signed OS Yes
General
Property description Property value
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
IP rating IP66, IP67
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q2112-E 60 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02611-001
AXIS Q2112-E 60 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02612-001
AXIS Q2112-E 35 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02609-001
AXIS Q2112-E 35 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02610-001
AXIS Q2112-E 25 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02607-001
AXIS Q2112-E 25 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02608-001
AXIS Q2112-E 19 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02605-001
AXIS Q2112-E 19 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02606-001
AXIS Q2112-E 10 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02603-001
AXIS Q2112-E 10 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02604-001
